11clicks
Simulate mouse input. Create clicks, cursor movement or wheel movement. Like 11strokes this can be useful in combination with (midi) controller devices. Example: One note on your midi keyboard is mapped to a mouse click. You can rest the mousecursor on prev/next preset button of a plugin, instrument etc. and step through presets without moving one hand to the mouse and back to the keyboard again and again.

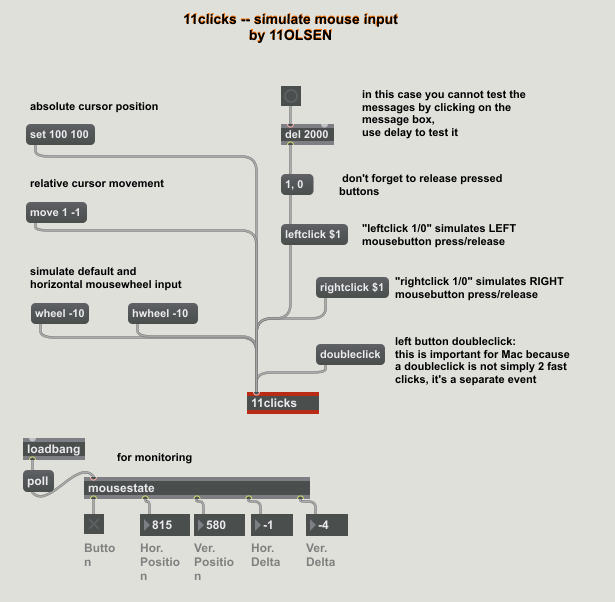

Screenshots:
 Installation:
Copy the files into your Max search path. Changelog:
2015/02/07:
2015/02/17:
Windows Version Source Code:
/** simulate mouse input
11oLsen, 2014,2015
*/
#include "ext.h" // standard Max include, always required
#include "ext_obex.h" // required for new style Max object
#include "jpatcher_api.h"
#include "windows.h"
////////////////////////// object struct
typedef struct _clicky
{
t_object ob; // the object itself (must be first)
t_object *w_patcher;
t_object *w_patcherview;
} t_clicky;
///////////////////////// function prototypes
//// standard set
void *clicky_new(t_symbol *s, long argc, t_atom *argv);
void clicky_free(t_clicky *x);
void clicky_assist(t_clicky *x, void *b, long m, long a, char *s);
void clicky_doubleclick(t_clicky *x);
void clicky_set(t_clicky *x, t_symbol *s, long argc, t_atom *argv);
void clicky_move(t_clicky *x, t_symbol *s, long argc, t_atom *argv);
void clicky_wheel(t_clicky *x, long n);
void clicky_hwheel(t_clicky *x, long n);
void clicky_leftclick(t_clicky *x, long n);
void clicky_rightclick(t_clicky *x, long n);
void clicky_cursor(t_clicky *x, t_symbol *s, long argc, t_atom *argv);
void clicky_init(t_clicky *x);
//////////////////////// global class pointer variable
void *clicky_class;
int C74_EXPORT main(void)
{
t_class *c;
c = class_new("11clicks", (method)clicky_new, (method)clicky_free, (long)sizeof(t_clicky), 0L /* leave NULL!! */, A_GIMME, 0);
/* you CAN'T call this from the patcher */
class_addmethod(c, (method)clicky_assist, "assist", A_CANT, 0);
class_addmethod(c, (method)clicky_doubleclick, "doubleclick", 0);
class_addmethod(c, (method)clicky_set, "set", A_GIMME, 0); // the method for an int in the left inlet (inlet 0)
class_addmethod(c, (method)clicky_move, "move", A_GIMME, 0); // the method for an int in the left inlet (inlet 0)
class_addmethod(c, (method)clicky_wheel, "wheel", A_LONG, 0);
class_addmethod(c, (method)clicky_hwheel, "hwheel", A_LONG, 0);
class_addmethod(c, (method)clicky_cursor, "cursor", A_GIMME, 0);
class_addmethod(c, (method)clicky_leftclick, "leftclick", A_LONG, 0); // the method for an int in the right inlet (inlet 1)
class_addmethod(c, (method)clicky_rightclick, "rightclick", A_LONG, 0); // (inlet 2)
class_register(CLASS_BOX, c); /* CLASS_NOBOX */
clicky_class = c;
common_symbols_init();
return 0;
}
void clicky_doubleclick(t_clicky *x)
{
INPUT inp[1];
inp[0].type= INPUT_MOUSE;
inp[0].mi.time = 0;
inp[0].mi.dwFlags = MOUSEEVENTF_LEFTDOWN;
SendInput(1, inp, sizeof(INPUT));
inp[0].mi.dwFlags = MOUSEEVENTF_LEFTUP;
SendInput(1, inp, sizeof(INPUT));
inp[0].mi.dwFlags = MOUSEEVENTF_LEFTDOWN;
SendInput(1, inp, sizeof(INPUT));
inp[0].mi.dwFlags = MOUSEEVENTF_LEFTUP;
SendInput(1, inp, sizeof(INPUT));
}
void clicky_leftclick(t_clicky *x, long n) // x = the instance of the object; n = the int received in the left inlet
{
INPUT inp[1];
if (n)
{
inp[0].type= INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_LEFTDOWN;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
else
{
inp[0].type= INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_LEFTUP;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
}
void clicky_rightclick(t_clicky *x, long n) // x = the instance of the object, n = the int received in the right inlet
{
INPUT inp[1];
if (n)
{
inp[0].type= INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_RIGHTDOWN;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
else
{
inp[0].type= INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_RIGHTUP;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
}
void clicky_set(t_clicky *x, t_symbol *s, long argc, t_atom *argv)
{
long h; long v;
double fScreenWidth;
double fScreenHeight;
double fx;
double fy;
INPUT inp[1];
h = (atom_getlong(argv+0));
v = atom_getlong(argv+1);
fScreenWidth = GetSystemMetrics( SM_CXVIRTUALSCREEN )-1;
fScreenHeight = GetSystemMetrics( SM_CYVIRTUALSCREEN )-1;
fx = h*(65535.0f/fScreenWidth);
fy = v*(65535.0f/fScreenHeight);
inp[0].type = INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_MOVE | MOUSEEVENTF_ABSOLUTE | MOUSEEVENTF_VIRTUALDESK;
inp[0].mi.dx = fx;
inp[0].mi.dy = fy;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
void clicky_move(t_clicky *x, t_symbol *s, long argc, t_atom *argv)
{
long h; long v;
INPUT inp[1];
h = (atom_getlong(argv+0));
v = atom_getlong(argv+1);
inp[0].type = INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_MOVE;
inp[0].mi.dx = h;
inp[0].mi.dy = v;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
void clicky_wheel(t_clicky *x, long n)
{
INPUT inp[1];
inp[0].type = INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_WHEEL;
inp[0].mi.mouseData = n;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
void clicky_hwheel(t_clicky *x, long n)
{
INPUT inp[1];
inp[0].type = INPUT_MOUSE;
inp[0].mi.dwFlags = MOUSEEVENTF_HWHEEL;
inp[0].mi.mouseData = n;
inp[0].mi.time = 0;
SendInput(1, inp, sizeof(INPUT));
}
////////////// CURSOR ///////////////////////////////////////////////
void clicky_cursor(t_clicky *x, t_symbol *s, long argc, t_atom *argv)
{
/*typedef enum _jmouse_cursortype {
JMOUSE_CURSOR_NONE, ///< None
JMOUSE_CURSOR_ARROW, ///< Arrow
JMOUSE_CURSOR_WAIT, ///< Wait
JMOUSE_CURSOR_IBEAM, ///< I-Beam
JMOUSE_CURSOR_CROSSHAIR, ///< Crosshair
JMOUSE_CURSOR_COPYING, ///< Copying
JMOUSE_CURSOR_POINTINGHAND, ///< Pointing Hand
JMOUSE_CURSOR_DRAGGINGHAND, ///< Dragging Hand
JMOUSE_CURSOR_RESIZE_LEFTRIGHT, ///< Left-Right
JMOUSE_CURSOR_RESIZE_UPDOWN, ///< Up-Down
JMOUSE_CURSOR_RESIZE_FOURWAY, ///< Four Way
JMOUSE_CURSOR_RESIZE_TOPEDGE, ///< Top Edge
JMOUSE_CURSOR_RESIZE_BOTTOMEDGE, ///< Bottom Edge
JMOUSE_CURSOR_RESIZE_LEFTEDGE, ///< Left Edge
JMOUSE_CURSOR_RESIZE_RIGHTEDGE, ///< Right Edge
JMOUSE_CURSOR_RESIZE_TOPLEFTCORNER, ///< Top-Left Corner
JMOUSE_CURSOR_RESIZE_TOPRIGHTCORNER, ///< Top-Right Corner
JMOUSE_CURSOR_RESIZE_BOTTOMLEFTCORNER, ///< Bottom-Left Corner
JMOUSE_CURSOR_RESIZE_BOTTOMRIGHTCORNER ///< Bottom-Right Corner
} t_jmouse_cursortype;*/
t_object *jb;
t_object *box;
//t_rect jr;
t_symbol *scriptingname;
t_symbol *vname;
long n;
long i;
jb = jpatcher_get_firstobject(x->w_patcher); // get the first BOX in the object list
box = jpatcher_get_box(x->w_patcherview); // get box of firstview
if (!argc || !argv){object_post((t_object *)x, "missing arguments"); return;}
if (argc == 1) { // apply to patcherview if only 1 arg
n = atom_getlong(argv+0);
jmouse_setcursor (x->w_patcherview, box, n);
object_method(x->w_patcher, _sym_refresh); //
return;
}
//now the case of more than 1 arg
if ((argv + 0)->a_type == A_LONG) {n = atom_getlong(argv+0);}
else {object_post((t_object *)x, "first arg needs to be the cursor number 0-18");return;}
if (atom_getsym(argv+1) == gensym("all")) // if second arg is "all", the defined cursor is applied to all objects in the patcher
{
while(jb) {
jmouse_setcursor (x->w_patcherview, jb, n);
jb = jbox_get_nextobject(jb);
}
object_method(x->w_patcher, _sym_refresh); return;
}
for (i = 1; i < argc; i++) { //for every argument starting with the second
if ((argv + i)->a_type == A_SYM) // if arg is a symbol
{
vname = atom_getsym(argv+i);
jb = jpatcher_get_firstobject(x->w_patcher);
while(jb) { // iterate to all objects in the patcher and apply cursor if name matches
scriptingname = jbox_get_varname(jb); // scripting name
if (scriptingname == vname)
{
jmouse_setcursor (x->w_patcherview, jb, n);
}
jb = jbox_get_nextobject(jb);
}// end while
} else {object_post((t_object *)x, "arg %ld is not a scripting-name", i+1);}
} // end for
// maybe upwards? jpatcher_get_parentpatcher(<#t_object * p#>)
object_method(x->w_patcher, _sym_refresh);
}
void clicky_assist(t_clicky *x, void *b, long m, long a, char *s)
{
//if (m==1)
//{ // Inlets
// switch (a)
// {
// case 0: strcpy(s, "set [x y], move [x y], wheel [int], hwheel [int]"); break;
// case 1: strcpy(s, "int 1/0 - LEFT mousebutton press/release"); break;
// case 2: strcpy(s, "int 1/0 - RIGHT mousebutton press/release"); break;
// }
//}
;
}
void clicky_free(t_clicky *x)
{
;
}
void *clicky_new(t_symbol *s, long argc, t_atom *argv)
{
t_clicky *x = NULL;
long i;
if (x = (t_clicky *)object_alloc(clicky_class))
{
//intin(x,2);
//intin(x,1); // create a second int inlet (leftmost inlet is automatic - all objects have one inlet by default)
object_post((t_object *)x, "by 11OLSEN, 2015-02-17", s->s_name);
object_obex_lookup(x, _sym_pound_P, &x->w_patcher); // assign w_patcher
//object_post((t_object *)x, "a new %s object was instantiated: 0x%X", s->s_name, x);
//object_post((t_object *)x, "it has %ld arguments", argc);
/*for (i = 0; i < argc; i++) {
if ((argv + i)->a_type == A_LONG) {
object_post((t_object *)x, "arg %ld: long (%ld)", i, atom_getlong(argv+i));
} else if ((argv + i)->a_type == A_FLOAT) {
object_post((t_object *)x, "arg %ld: float (%f)", i, atom_getfloat(argv+i));
} else if ((argv + i)->a_type == A_SYM) {
object_post((t_object *)x, "arg %ld: symbol (%s)", i, atom_getsym(argv+i)->s_name);
} else {
object_error((t_object *)x, "forbidden argument");
}
}*/
defer_low(x, (method)clicky_init, NULL, 0, NULL);
}
return (x);
}
void clicky_init(t_clicky *x)
{
x->w_patcherview = object_attr_getobj(x->w_patcher, _sym_firstview); //get firstview object of w_patcher
}
Mac Version Source Code:
/** simulate mouse input
11oLsen, 2014,2015
*/
#include "ext.h" // standard Max include, always required
#include "ext_obex.h" // required for new style Max object
#include "ApplicationServices/ApplicationServices.h"
////////////////////////// object struct
typedef struct _clicky
{
t_object ob; // the object itself (must be first)
t_object *w_patcher;
t_object *w_patcherview;
} t_clicky;
///////////////////////// function prototypes
//// standard set
void *clicky_new(t_symbol *s, long argc, t_atom *argv);
void clicky_free(t_clicky *x);
void clicky_assist(t_clicky *x, void *b, long m, long a, char *s);
void clicky_doubleclick(t_clicky *x);
void clicky_set(t_clicky *x, t_symbol *s, long argc, t_atom *argv);
void clicky_move(t_clicky *x, t_symbol *s, long argc, t_atom *argv);
void clicky_wheel(t_clicky *x, long n);
void clicky_hwheel(t_clicky *x, long n);
void clicky_leftclick(t_clicky *x, long n);
void clicky_rightclick(t_clicky *x, long n);
void clicky_cursor(t_clicky *x, t_symbol *s, long argc, t_atom *argv);
void clicky_init(t_clicky *x);
//////////////////////// global class pointer variable
void *clicky_class;
CGEventTapLocation tapLocation;
CGEventSourceRef sourceRef;
int C74_EXPORT main(void)
{
// object initialization, OLD STYLE
// setup((t_messlist **)&clicky_class, (method)clicky_new, (method)clicky_free, (short)sizeof(t_clicky),
// 0L, A_GIMME, 0);
// addmess((method)clicky_assist, "assist", A_CANT, 0);
// object initialization, NEW STYLE
t_class *c;
c = class_new("11clicks", (method)clicky_new, (method)clicky_free, (long)sizeof(t_clicky), 0L /* leave NULL!! */, A_GIMME, 0);
/* you CAN'T call this from the patcher */
class_addmethod(c, (method)clicky_assist, "assist", A_CANT, 0);
class_addmethod(c, (method)clicky_doubleclick, "doubleclick", 0);
class_addmethod(c, (method)clicky_set, "set", A_GIMME, 0); // the method for an int in the left inlet (inlet 0)
class_addmethod(c, (method)clicky_move, "move", A_GIMME, 0); // the method for an int in the left inlet (inlet 0)
class_addmethod(c, (method)clicky_wheel, "wheel", A_LONG, 0);
class_addmethod(c, (method)clicky_hwheel, "hwheel", A_LONG, 0);
class_addmethod(c, (method)clicky_cursor, "cursor", A_GIMME, 0);
class_addmethod(c, (method)clicky_leftclick, "leftclick", A_LONG, 0); // the method for an int in the right inlet (inlet 1)
class_addmethod(c, (method)clicky_rightclick, "rightclick", A_LONG, 0); // (inlet 2)
class_register(CLASS_BOX, c); /* CLASS_NOBOX */
clicky_class = c;
//post("");
tapLocation = kCGHIDEventTap; // used when specifying the tap location for CGEventPost
sourceRef = CGEventSourceCreate(kCGEventSourceStateCombinedSessionState);
//CGEventSourceSetPixelsPerLine(sourceRef, 1.);
common_symbols_init();
return 0;
}
void clicky_doubleclick(t_clicky *x)
{
// get the current mouse location
CGEventRef mouseEvent = CGEventCreate(NULL);
CGPoint mouseLoc = CGEventGetLocation(mouseEvent);
CFRelease(mouseEvent);
// NOTE: the first mouse down and mouse up are not really needed to perform a double click
// I only do that because sometimes you have to click once to bring whatever you want to double-click to the front
// first click mouse
CGEventRef clickMouse = CGEventCreateMouseEvent(sourceRef, kCGEventLeftMouseDown, mouseLoc, 0);
CGEventSetIntegerValueField(clickMouse, kCGMouseEventClickState, 1);
CGEventPost(tapLocation, clickMouse);
CFRelease(clickMouse);
// first mouse up
CGEventRef releaseMouse = CGEventCreateMouseEvent(sourceRef, kCGEventLeftMouseUp, mouseLoc, 0);
CGEventSetIntegerValueField(releaseMouse, kCGMouseEventClickState, 1);
CGEventPost(tapLocation, releaseMouse);
CFRelease(releaseMouse);
// second click mouse
CGEventRef clickMouse2 = CGEventCreateMouseEvent(sourceRef, kCGEventLeftMouseDown, mouseLoc, 0);
CGEventSetIntegerValueField(clickMouse2, kCGMouseEventClickState, 2);
CGEventPost(tapLocation, clickMouse2);
CFRelease(clickMouse2);
// second mouse up
CGEventRef releaseMouse2 = CGEventCreateMouseEvent(sourceRef, kCGEventLeftMouseUp, mouseLoc, 0);
CGEventSetIntegerValueField(releaseMouse2, kCGMouseEventClickState, 2);
CGEventPost(tapLocation, releaseMouse2);
CFRelease(releaseMouse2);
}
void clicky_leftclick(t_clicky *x, long n) // x = the instance of the object; n = the int received in the left inlet
{
if (n)
{
// get the current mouse location
CGEventRef mouseEvent = CGEventCreate(NULL);
CGPoint mouseLoc = CGEventGetLocation(mouseEvent);
CFRelease(mouseEvent);
// click mouse
CGEventRef clickMouse = CGEventCreateMouseEvent(sourceRef, kCGEventLeftMouseDown, mouseLoc, 0);
CGEventPost(tapLocation, clickMouse);
CFRelease(clickMouse);// left-click at current mouse location but do not release the mouse
}
else
{
// get the current mouse location
CGEventRef mouseEvent = CGEventCreate(NULL);
CGPoint mouseLoc = CGEventGetLocation(mouseEvent);
CFRelease(mouseEvent);
// release mouse
CGEventRef releaseMouse = CGEventCreateMouseEvent(sourceRef, kCGEventLeftMouseUp, mouseLoc, 0);
CGEventPost(tapLocation, releaseMouse);
CFRelease(releaseMouse);
}
}
void clicky_rightclick(t_clicky *x, long n) // x = the instance of the object, n = the int received in the right inlet
{
if (n)
{
// get the current mouse location
CGEventRef mouseEvent = CGEventCreate(NULL);
CGPoint mouseLoc = CGEventGetLocation(mouseEvent);
CFRelease(mouseEvent);
// click mouse
CGEventRef clickMouse = CGEventCreateMouseEvent(sourceRef, kCGEventRightMouseDown, mouseLoc, 0);
CGEventPost(tapLocation, clickMouse);
CFRelease(clickMouse);// click at current mouse location but do not release the mouse
}
else
{
// get the current mouse location
CGEventRef mouseEvent = CGEventCreate(NULL);
CGPoint mouseLoc = CGEventGetLocation(mouseEvent);
CFRelease(mouseEvent);
// release mouse
CGEventRef releaseMouse = CGEventCreateMouseEvent(sourceRef, kCGEventRightMouseUp, mouseLoc, 0);
CGEventPost(tapLocation, releaseMouse);
CFRelease(releaseMouse);
}
}
void clicky_set(t_clicky *x, t_symbol *s, long argc, t_atom *argv)
{
long h; long v;
h = atom_getfloat(argv+0);
v = atom_getfloat(argv+1);
//CGWarpMouseCursorPosition(CGPointMake(h, v));
CGEventRef moveMouse = CGEventCreateMouseEvent(sourceRef, kCGEventMouseMoved, CGPointMake(h, v), 0);
CGEventPost(tapLocation, moveMouse);
CFRelease(moveMouse);
// mouse jumps directly from its current position to the new position and becomes visible, origin of CGPoint must be top-left
}
void clicky_move(t_clicky *x, t_symbol *s, long argc, t_atom *argv)
{
long h; long v;
h = atom_getfloat(argv+0);
v = atom_getfloat(argv+1);
// get the current mouse location
CGEventRef mouseEvent = CGEventCreate(NULL);
CGPoint currentLoc = CGEventGetLocation(mouseEvent);
CFRelease(mouseEvent);
//CGWarpMouseCursorPosition(CGPointMake(h, v));
CGEventRef moveMouse = CGEventCreateMouseEvent(sourceRef, kCGEventMouseMoved, CGPointMake((currentLoc.x+h), (currentLoc.y+v)), 0);
CGEventPost(tapLocation, moveMouse);
CFRelease(moveMouse);
}
void clicky_wheel(t_clicky *x, long n)
{
CGEventRef scrollWheel = CGEventCreateScrollWheelEvent(sourceRef, kCGScrollEventUnitPixel, 2, n, 0);
CGEventPost(tapLocation, scrollWheel);
CFRelease(scrollWheel);
}
void clicky_hwheel(t_clicky *x, long n)
{
CGEventRef scrollWheel = CGEventCreateScrollWheelEvent(sourceRef, kCGScrollEventUnitPixel, 2, 0, n);
CGEventPost(tapLocation, scrollWheel);
CFRelease(scrollWheel);
}
////////////// CURSOR ///////////////////////////////////////////////
void clicky_cursor(t_clicky *x, t_symbol *s, long argc, t_atom *argv)
{
/*typedef enum _jmouse_cursortype {
JMOUSE_CURSOR_NONE, ///< None
JMOUSE_CURSOR_ARROW, ///< Arrow
JMOUSE_CURSOR_WAIT, ///< Wait
JMOUSE_CURSOR_IBEAM, ///< I-Beam
JMOUSE_CURSOR_CROSSHAIR, ///< Crosshair
JMOUSE_CURSOR_COPYING, ///< Copying
JMOUSE_CURSOR_POINTINGHAND, ///< Pointing Hand
JMOUSE_CURSOR_DRAGGINGHAND, ///< Dragging Hand
JMOUSE_CURSOR_RESIZE_LEFTRIGHT, ///< Left-Right
JMOUSE_CURSOR_RESIZE_UPDOWN, ///< Up-Down
JMOUSE_CURSOR_RESIZE_FOURWAY, ///< Four Way
JMOUSE_CURSOR_RESIZE_TOPEDGE, ///< Top Edge
JMOUSE_CURSOR_RESIZE_BOTTOMEDGE, ///< Bottom Edge
JMOUSE_CURSOR_RESIZE_LEFTEDGE, ///< Left Edge
JMOUSE_CURSOR_RESIZE_RIGHTEDGE, ///< Right Edge
JMOUSE_CURSOR_RESIZE_TOPLEFTCORNER, ///< Top-Left Corner
JMOUSE_CURSOR_RESIZE_TOPRIGHTCORNER, ///< Top-Right Corner
JMOUSE_CURSOR_RESIZE_BOTTOMLEFTCORNER, ///< Bottom-Left Corner
JMOUSE_CURSOR_RESIZE_BOTTOMRIGHTCORNER ///< Bottom-Right Corner
} t_jmouse_cursortype;*/
t_object *jb;
t_object *box;
//t_rect jr;
t_symbol *scriptingname;
t_symbol *vname;
long n;
long i;
jb = jpatcher_get_firstobject(x->w_patcher); // get the first BOX in the object list
box = jpatcher_get_box(x->w_patcherview); // get box of firstview
if (!argc || !argv){object_post((t_object *)x, "missing arguments"); return;}
if (argc == 1) { // apply to patcherview if only 1 arg
n = atom_getlong(argv+0);
jmouse_setcursor (x->w_patcherview, box, n);
object_method(x->w_patcher, _sym_refresh); //
return;
}
//now the case of more than 1 arg
if ((argv + 0)->a_type == A_LONG) {n = atom_getlong(argv+0);}
else {object_post((t_object *)x, "first arg needs to be the cursor number 0-18");return;}
if (atom_getsym(argv+1) == gensym("all")) // if second arg is "all", the defined cursor is applied to all objects in the patcher
{
while(jb) {
jmouse_setcursor (x->w_patcherview, jb, n);
jb = jbox_get_nextobject(jb);
}
object_method(x->w_patcher, _sym_refresh); return;
}
for (i = 1; i < argc; i++) { //for every argument starting with the second
if ((argv + i)->a_type == A_SYM) // if arg is a symbol
{
vname = atom_getsym(argv+i);
jb = jpatcher_get_firstobject(x->w_patcher);
while(jb) { // iterate to all objects in the patcher and apply cursor if name matches
scriptingname = jbox_get_varname(jb); // scripting name
if (scriptingname == vname)
{
jmouse_setcursor (x->w_patcherview, jb, n);
}
jb = jbox_get_nextobject(jb);
}// end while
} else {object_post((t_object *)x, "arg %ld is not a scripting-name", i+1);}
} // end for
// maybe upwards? jpatcher_get_parentpatcher(<#t_object * p#>)
object_method(x->w_patcher, _sym_refresh);
}
void clicky_assist(t_clicky *x, void *b, long m, long a, char *s)
{
// if (m==1)
// { // Inlets
// switch (a)
// {
// case 0: strcpy(s, "set [x y], move [x y], wheel [int], hwheel [int]"); break;
// case 1: strcpy(s, "int 1/0 - LEFT mousebutton press/release"); break;
// case 2: strcpy(s, "int 1/0 - RIGHT mousebutton press/release"); break;
// }
// }
}
void clicky_free(t_clicky *x)
{
;}
void *clicky_new(t_symbol *s, long argc, t_atom *argv)
{
t_clicky *x = NULL;
long i;
if ((x = (t_clicky *)object_alloc(clicky_class)))
{
//intin(x,2);
//intin(x,1); // create a second int inlet (leftmost inlet is automatic - all objects have one inlet by default)
object_post((t_object *)x, "%s by 11OLSEN, 2015-02-17", s->s_name);
object_obex_lookup(x, _sym_pound_P, &x->w_patcher); // assign w_patcher
for (i = 0; i < argc; i++) {
if ((argv + i)->a_type == A_LONG) {
object_post((t_object *)x, "arg %ld: long (%ld)", i, atom_getlong(argv+i));
} else if ((argv + i)->a_type == A_FLOAT) {
object_post((t_object *)x, "arg %ld: float (%f)", i, atom_getfloat(argv+i));
} else if ((argv + i)->a_type == A_SYM) {
object_post((t_object *)x, "arg %ld: symbol (%s)", i, atom_getsym(argv+i)->s_name);
} else {
object_error((t_object *)x, "forbidden argument");
}
}
defer_low(x, (method)clicky_init, NULL, 0, NULL);
}
return (x);
}
void clicky_init(t_clicky *x)
{
x->w_patcherview = object_attr_getobj(x->w_patcher, _sym_firstview); //get firstview object of w_patcher
}
Files:
|
30.92 KB
Thank you!!
I´ve insertet it into a Max4live patcher.
Look here:
http://www.maxforlive.com/library/device/3962/automatet-mouseclick
Thak You 11olsen!!!!!!!!!!!
RSS feed for comments to this post
